Difficulty
Moderate
Steps
4
Time Required
- 05 - Shutdown 4 steps
User-Contributed Guide
This guide is not managed by the site's staff.
-
-
Jog the gantry toward the rear of the machine to allow room to remove your project from the spoilboard.
-
Leave the gantry parked toward the rear of the machine to allow the next user to install their material without needing to turn on the machine first.
-
-
-
Press the red "Power Off" button in the upper left of the control cabinet.
-
-
-

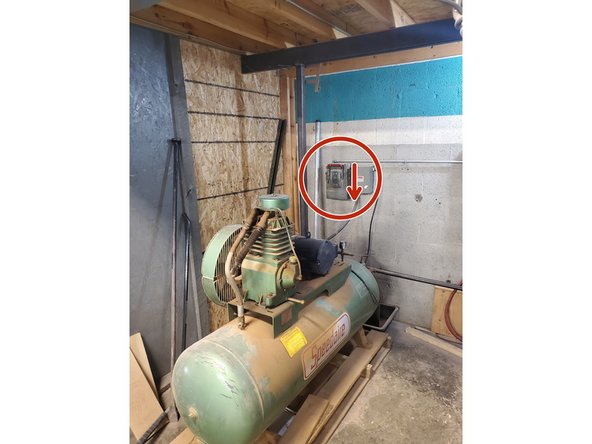

Check that nobody else is using compressed air tools in the wood or metal shop.
-
If not, move the air compressor power switch back to "off."
-
If so, leave the compressor on.
-
-
-

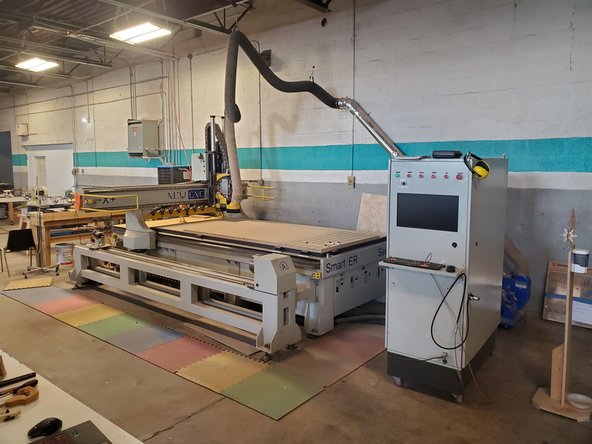

Use a shop-vac or brush and dust pans to remove any remaining dust and chips from the area.
-
Clean any tape or residue from the spoil board.
-
Remove any raised points caused by screws on the spoil board.
-
Empty the dust collector if the lower bag is more than half full.
-
Leave the area better than you found it.
-
