Vevor KW-870A Vinyl Cutter

While it's actually difficult to get your fingers under the thing during operation, the blade is intentionally sharp and can draw blood.

Especially when changing cutters, be aware of the location of the blades.

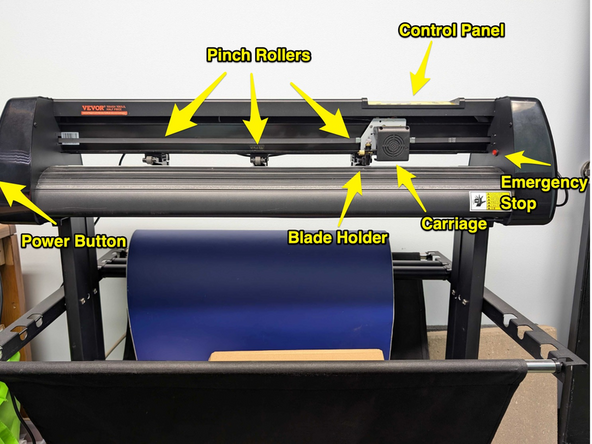

Control Panel: Manually moves the carriage, advance the medium, adjust settings, etc.

Carriage: Moves the blade holder along the X axis.

Blade Holder: Suspends replaceable blades for cutting the vinyl, etc.

Pinch Roller: Holds the vinyl (or other cuttable media) tightly to the feed roller below.

Emergency Stops: Used to automatically stop the machine from cutting (to avoid damage) when improper cutting parameters are set, or in the event of software errors.

Power Button: Turns the machine on and off.

Pinch Roller Release Levers: Can be released by pressing down on the Release Levers. Pinch rollers should be adjusted so that one is positioned on each side of the vinyl /media to be cut and should only be lowered onto an area of the feed roller below that has traction (the rough area).

Media Holder: Place the roll of vinyl (or other media) on the wheels so it can easily feed into the machine.

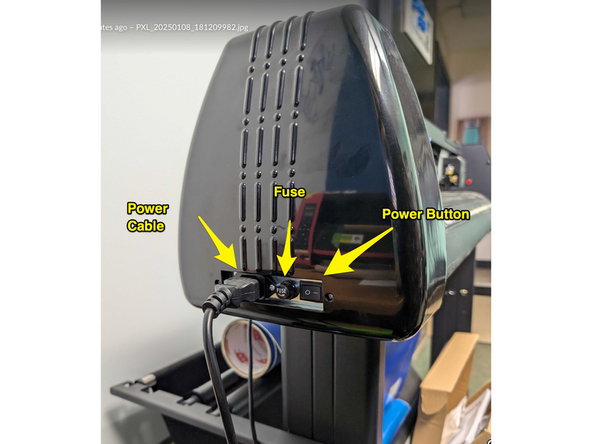

Power Button: Turn the machine on and off with this button.

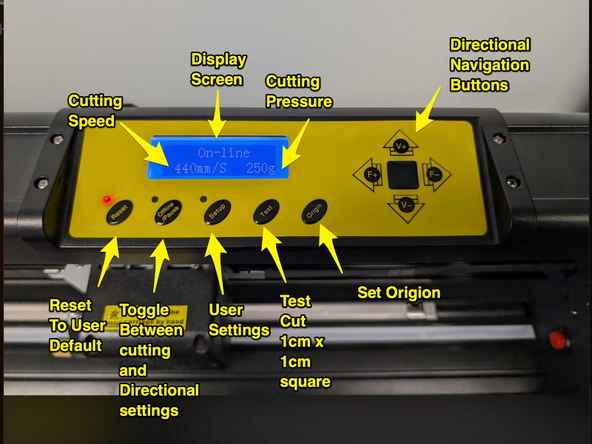

Display Screen: Shows the current Mode/Status of the Cutter

Test Button: Cuts a test square of 1cm x 1cm

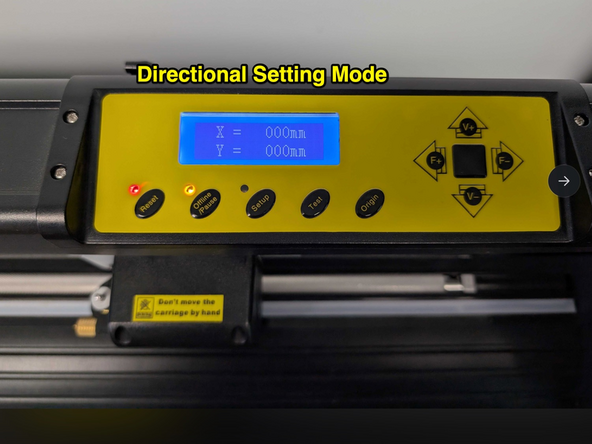

Offline/Pause Button: Toggles between On Line/Off Line modes. Use this to reach the X and Y directional settings.

Origin Button: Sets cutter origin in directional mode.

Settings: Allows the setting of cutting speed and cutting pressure for the user. These settings can also be set in online mode.

Reset Button: Resets cutting speed and cutting pressure to whatever the current user settings are.
