Difficulty
Moderate
Steps
6
Time Required
- Metal Lathe 6 steps
In Progress
This guide is currently being written. Reload periodically to see the latest changes.
User-Contributed Guide
This guide is not managed by the site's staff.
-
-
Approved safety glasses must be worn at all times with this equipment.
-
Gloves must not be worn when using this equipment.
-
Close fitting protective clothing or a suitable workshop apron is advisable.
-
Contain or restrain long and loose hair, and remove exposed rings or jewellery
-
-
-
Rotating parts – Entanglement
-
Ejected material and particles
-
Eye injuries
-
Hot metal – Burn
-
Noise
-
Sharp edges and burs
-
-
-

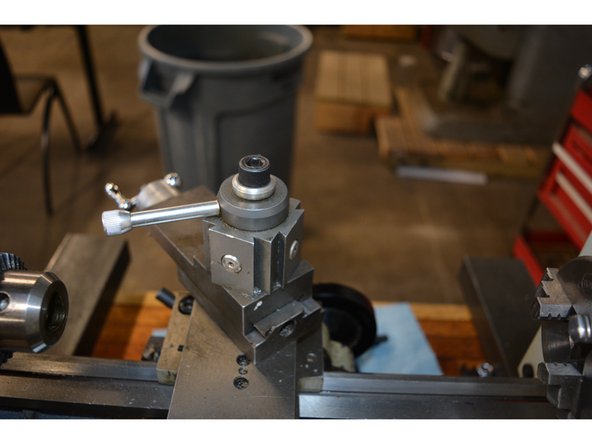

Move the carriage saddle and tailstock along the bed to allow room and clearance to the lathe chuck.
-

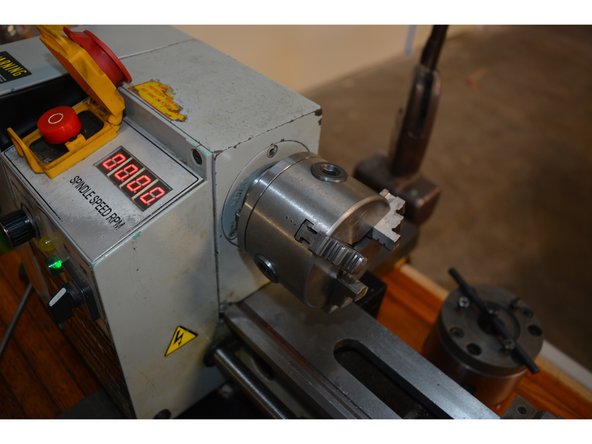

place round stock securely in the 3 jaw chuck, tightening with the chuck key
-
Turn lathe chuck and workpiece slowly by hand to ensure clearance and correct fitment in the chuck
-
-
-

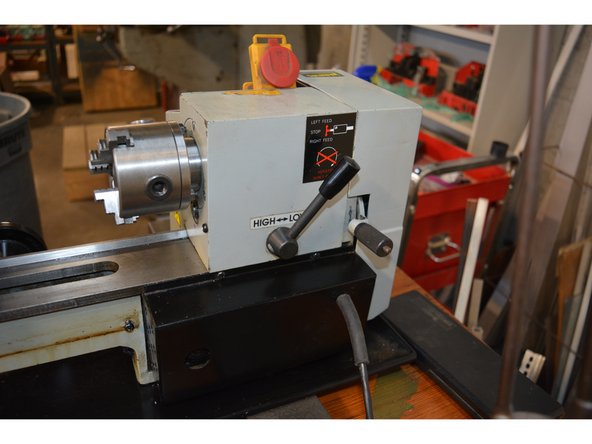

Keep all body parts well clear (at least 150mm) of the rotating chuck and the tool post.
-

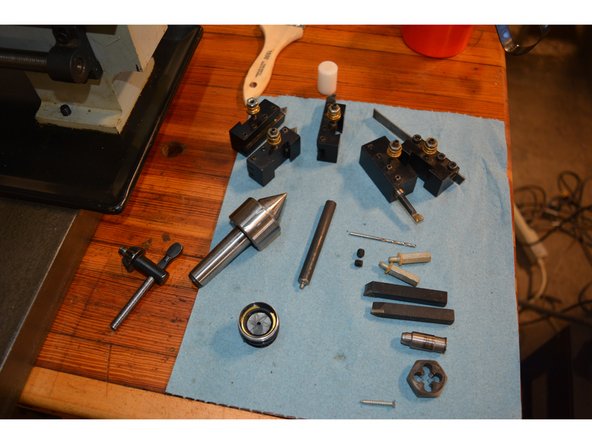

Use cutting fluid as required to prevent workpiece from heating.
-

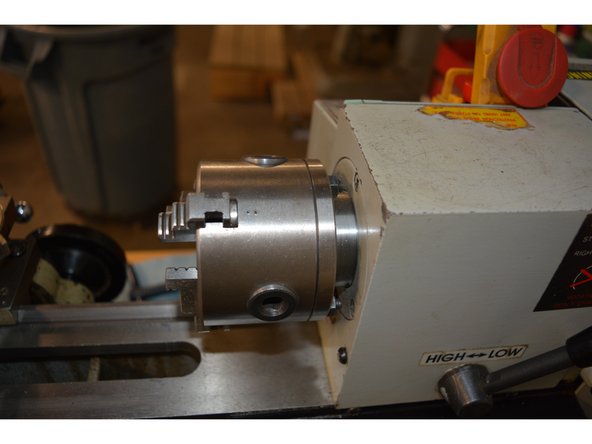

Using the carriage/saddle handwheel, cross slide and compound handwheels to make cuts of the workpiece
-
Take caution to not drive tool post into the chuck!
-
-
-
Switch off the power to the machine when work is completed.
-
Never leave chuck key in the chuck.
-
Clean up all debris using a brush and dispose of appropriately
-
Put away all accessories and tooling.
-
Dispose of any waste material in the appropriate bins provided.
-
