Introduction
This guide will give the basic knowledge of the parts and gas system purging of the jewelers torches within the Lansing Makers Network.
-
-
Unwrap the torch hose from the rack and place it in a secure position
-
Open regulator valve counter-clockwise completely until there is no resistance.
-

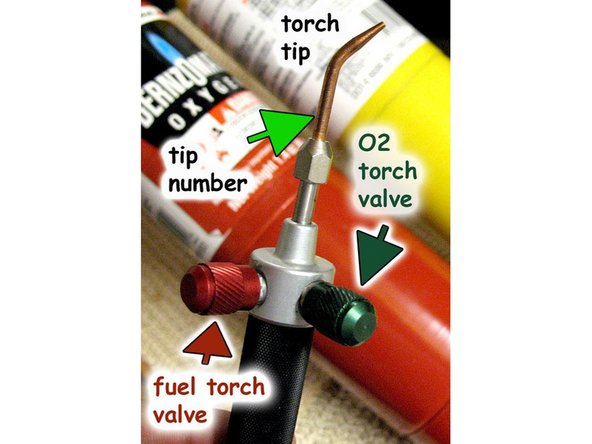

Remove torch tip if present. Wrench is located with the other torch tips.
-

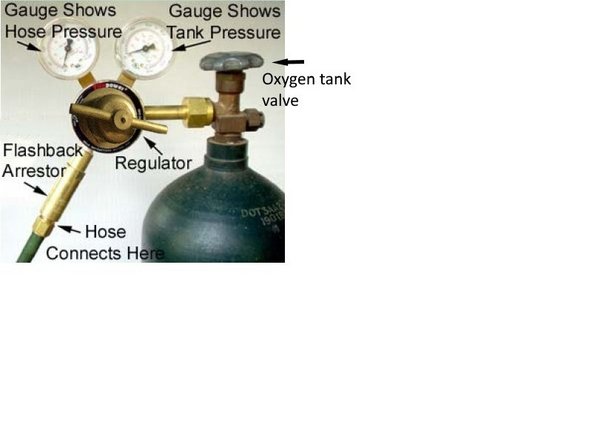

Open tank valve all the way open.
-
Turn regulator valve clockwise slowly until the left (hose pressure) gauge begins to move.
-
Adjust regulator until the inner red ring is at the desired pressure. (see Appendix A)
-
Open the corresponding valve on the torch (counter-clockwise) for ten seconds then fully close the valve (clockwise).
-
If the torch you are using has two adjustable regulators, repeat the steps for the other hose on the torch.
-
-
-

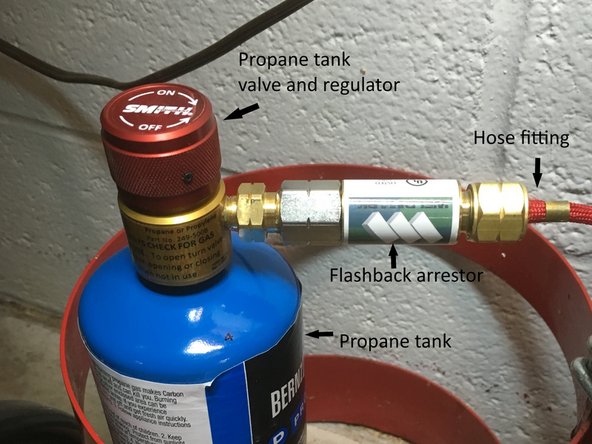

Turn the tank regulator knob (clockwise) until fully open.
-
Open corresponding torch valve (counter-clockwise) for ten seconds, then close the valve (clockwise).
-
